How to Disconnect a Fuel Injector Connector Without Breaking the Clip (2026)

Last updated: October 2026 | By AltitudeCraft Team

To disconnect a fuel injector connector without breaking it, first work out which kind of lock it has. Then release that lock and pull on the plug body, never the wires. Most broken clips come from treating every injector plug as if it had the same push button. This guide covers fuel injector connector removal for each type, and what to do if a clip has already snapped.

Disclosure: AltitudeCraft makes electrical disconnect pliers. We say below where a $1 pick does the job better.

The tool for this job

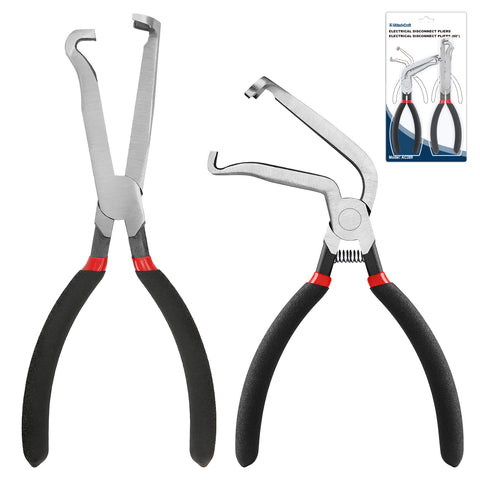

Electrical Disconnect Pliers 2-Piece Set

$29.99

Free shipping & free returns on US orders $25+

View product

Why do fuel injector connector clips break so easily?

Injector clips break because they sit on top of a hot engine for years and are released with the wrong motion. The plug lives on the intake or fuel rail, where heat cycles dry out the plastic. Factory service manuals usually just say "disconnect the injector connector" without saying how. An NSX owner wrote that they "can't get the electrical connectors off the fuel injectors" because the manual showed no release method (NSX Prime forum).

Age makes it worse. A 2003 Suburban owner replacing knock sensors reported: "Unfortunately broke 3 of the 8 fuel injector clips. 5 released without issues." The same job on a 2004 Yukon broke none. Their verdict: "the plastic on my 03 burb seemed very brittle" (Tahoe Yukon Forum).

Access is the third problem. A Garage Journal member put it this way: "There is always one of those behind the EGR or intake manifold you can grip with 2 fingers and no where to apply pulling force" (Garage Journal). Pulling at an angle loads the latch hook until it snaps.

Which fuel injector connector do you have? EV1 vs EV6 and others

Identify the connector before you touch it, because the release method depends on the design. Fuel Injector Clinic's terminology guide splits the common plugs by how they look (FordMuscle). EV1 injectors more often had a Jetronic plug, which has either an exposed metal retaining clip or squeeze tabs on each side. As the guide puts it, "Many late model domestics have an EV6 injector with a USCAR plug." That plug has a single retaining tab. Denso plugs have one locating slot on each side and a single clip on the top or bottom.

Not sure? Clean the plug and use a flashlight. As one Garage Journal member said: "Just figuring out which tab is holding it is half the battle." If your engine has a flex-fuel option, note that flex-fuel and gasoline injector plugs can differ.

Fuel injector connector removal in six steps

The safe sequence is: identify, clear, unload, release, pull straight, inspect. The sections after the steps cover each lock type.

1. Make it safe. Let the engine cool. Many technicians disconnect the negative battery cable before working on engine harnesses.
2. Clean and look. Blow or wipe off dirt so you can see the lock.
3. Remove any secondary lock. Slide out a red or colored lock if there is one. Leave it hanging on the plug if it is tethered.
4. Push before you pull. Press the plug a fraction further onto the injector. This takes the load off the latch hook so it can lift instead of tearing.
5. Release and pull the body. Hold the latch released and pull the plastic plug body straight off the injector. Never pull on the wires.
6. Inspect. Check the latch and terminals for cracks or corrosion.

Common mistake: wiggling the plug side to side to "work it loose." That bends the latch hook sideways, and the hook is the part that breaks.

How do you release a wire-clip (Jetronic / EV1) injector connector?

Fuel injector clip removal on wire-clip plugs means prying outward, not pressing. An NSX Prime member explained: "You have to pull the metal clip to the side. I use small flat screwdiver to pul the end of the clip to release it." The original poster confirmed that "a small Jeweler's flathead screwdriver did the trick" and that "the metal clip had to be opened outwards and pulled back outside the groove on both sides." Another member used a small pick to lift one side at a time, leaving the clip resting above the groove. With both ends out, the plug pulls straight off. A pick is the right tool here.

How do you remove an injector connector with a red slide lock?

Pull the red slide lock out first. The main latch won't release while it is in place. On a 2000 Jeep Cherokee thread, one member advised: "Pull the red slide lock (if still there) up towards the hood. It might break off. Thats ok.. its not really needed" (NAXJA forum). On old plugs, they avoided pressing the button hard. Instead they used "a small pick to gently pull the clip up a bit.. like 1/16"" while pulling the plug away from the injector. If the lock survives, reinstall it, because it backs up the main latch.

How do you unplug a USCAR (EV6 / EV14) push-tab connector?

USCAR plugs come apart easily once the tab is unloaded. Push the plug slightly toward the injector, press the single tab fully, and pull straight back along the injector's axis. If the tab is buried under a fuel rail or intake runner, this is where a hook-style plier helps. Its jaws sit behind the plug shoulder, and its tip presses the tab, so your pulling force goes into the plug body instead of the latch. A 60° angled head lets your hand stay above the runners while the jaws reach underneath.

Common mistake: using a flat screwdriver to lever the plug off against the injector body. That puts all the force on the latch hook and can also crack the injector's connector shroud. A cracked shroud means replacing the injector, not just the plug.

Do you need disconnect pliers, or will a pick work?

Disconnect pliers help most when you can reach the plug but can't pull it straight. A pick is better for wire clips. Mechanics disagree about specialty connector pliers. One Garage Journal member who owned a set wrote: "I own them and don't understand them I use a pocket screwdriver." Others prefer "a 90 degree pick on the clasp or small screwdriver." The table below matches the tool to the job.

Our electrical disconnect pliers 2-piece set ($29.99) includes a straight plier for head-on plugs and a 60° plier for buried ones. Both are spring-loaded carbon steel for one-handed use. You can also buy the 60° angled disconnect pliers or the straight electrical disconnect pliers on their own. The jaws need a gap behind the plug shoulder. On plugs packed tight against the fuel rail, a pick is still the only option, and neither plier helps with wire clips.

How do you disconnect a GM LS fuel injector connector? (video)

This short video shows the release on 1999-2006 GM 5.3 and 6.0 trucks. The creator notes it is "not intuitive" but needs no tool once you know the trick.

What if you already broke a fuel injector connector clip?

A broken injector clip is an annoyance, not an emergency, as long as the plug stays fully seated. The Suburban owner found the broken plugs "still plug into the injector" but "can now be pulled off by just tugging on the wire." A loose plug can cause an intermittent misfire, so it needs to be secured. Owners in that thread used three fixes:

• Zip tie as a stopgap. One member had zip-tied broken clips with "No problems for almost 5 years and 40,000+ miles and counting." Loop the tie around the plug and the injector body, not the wires.
• Re-pin into a new shell. Release the terminals from the broken housing and push them into a new or salvaged one. As one reply put it, there is "no need to cut any wires." Photograph the wire positions first.
• Splice in a pigtail. Replacement pigtails are cheap and widely sold. Match the connector type and the fuel type.

The original owner re-pinned with junkyard plugs and called it "pretty easy."

How should you reconnect it so it comes apart next time?

Reconnect until you hear or feel the click, then tug the plug body to confirm it's latched. Reinstall any red secondary lock, since it stops vibration from walking the plug loose. A small amount of dielectric grease on the seal can make the plug easier to remove next time. Don't soak the plug in spray lubricant. One Garage Journal member warned that "some silicone sprays can degrade plastic."

Frequently Asked Questions About Disconnecting Fuel Injector Connectors

Do I have to remove the fuel rail to unplug the injectors?

Usually not, but it depends on the engine. On an NSX Prime thread, members found the clips very hard to reach with the rail installed, and pulling the rail gives more room. Another member managed it with the rail in place, using a small pick one side at a time.

Why won't my injector connector come off even after pressing the tab?

Usually because a secondary lock is still in, the latch is still loaded, or the tab isn't pressed fully. Pull out any colored slider, push the plug slightly toward the injector, then press the tab and pull straight.

What is the difference between EV1 and EV6 injector connectors?

EV1 injectors more often use a Jetronic plug with a metal wire clip or two side tabs. EV6 injectors commonly use a USCAR plug with a single tab and two locating slots on one side. Adapter pigtails exist to convert between them.

Can I drive with a broken injector connector clip?

Only if the plug stays fully seated. Zip-tie it to the injector body until you can re-pin or replace it.

Will disconnect pliers work on wire-clip connectors?

Not well. A small pick or jeweler's screwdriver pries wire clips out of the groove better. Pliers suit buried push-tab plugs.

Related reading

• Why Car Electrical Connector Tabs Break (and How to Disconnect Them Without Damage)
• Low Profile Socket Adapters for Brake Caliper and Spark Plug Jobs
• Automotive Tool Guide: Every Tool for DIY Mechanics

The bottom line

Identify the lock before you pull on a fuel injector connector, then pull the plug body straight off. If a clip breaks, zip-tie it for now and re-pin it later. For push-tab plugs buried under the intake, our 2-piece disconnect plier set gives you a straight and an angled reach.
