Rounded Bolt Head? How a Wrench Extender Saves the Day (2026)

Why Do Bolt Heads Round Off? The 4 Root Causes

Before you can fix a rounded bolt, you need to understand what causes the problem in the first place. Rounded bolt heads are one of the most frustrating issues in mechanical work — and they're almost entirely preventable once you know the root causes.

1. Using the Wrong Size Wrench or Socket

This is the number one cause of rounded bolts, accounting for an estimated 60-70% of cases in professional shop environments. When a 12mm socket gets used on a 13mm bolt — or worse, when someone grabs an SAE wrench for a metric fastener — the small gap between the tool and the bolt hex allows the wrench to slip under load. Each slip removes a tiny amount of material from the bolt corners, progressively rounding them.

The problem compounds quickly. A bolt that's slightly rounded requires even more force to turn, which causes more slipping, which causes more rounding. Within 3-4 attempts with the wrong tool, a bolt can go from "slightly damaged" to "completely destroyed."

2. Using 12-Point Sockets on Corroded Fasteners

Twelve-point sockets contact the bolt at the corners of the hex — the weakest point. On a clean, undamaged bolt this works fine. But on corroded or slightly worn bolts, 12-point sockets concentrate force exactly where the material is weakest, accelerating rounding. Always use 6-point sockets on stubborn fasteners. The flat-to-flat contact distributes force across the bolt face instead of the corners.

3. Corrosion and Rust Weakening the Hex Profile

Rust doesn't just make bolts harder to turn — it physically destroys the hex profile from the outside in. Surface corrosion can remove 0.2-0.5mm of material from each flat of the bolt head, effectively making a 13mm bolt head behave like a 12.5mm bolt head. Now your correctly-sized 13mm socket has a gap, and you're back to the slipping problem.

This is particularly common in automotive exhaust work, suspension components, and any fasteners exposed to road salt. According to the Research Council on Structural Connections bolt specification guide, environmental exposure is a leading factor in fastener degradation and subsequent removal difficulty.

4. Applying Force at the Wrong Angle

When your wrench or ratchet isn't perfectly square to the bolt head, the tool tends to cam off the fastener. Working in tight engine bays, underneath vehicles, or in awkward positions almost guarantees you'll apply some off-axis force. This is where tool quality matters enormously — cheap sockets with loose tolerances make the problem worse.

Why Extra Leverage Prevents Rounding (Not Causes It)

There's a common misconception that using a cheater bar or wrench extender will round bolt heads. The opposite is actually true — when used correctly.

Here's the physics: a rounded bolt head is caused by slipping, not by excessive force. When you use a short wrench on a stuck bolt, you apply maximum hand force through a short lever arm. Your muscles strain, your grip isn't perfectly steady, and the wrench is more likely to slip. Each slip removes material.

With a wrench extender, the same breakaway torque requires significantly less hand force. Your grip is more controlled, the force application is smoother, and the tool is less likely to slip. A 15-inch extender on a 10-inch wrench gives you roughly 2.5x the effective lever arm — meaning you need less than half the hand force to generate the same torque at the fastener.

The key is one smooth, controlled pull instead of jerky, repeated attempts with a short wrench. That single controlled motion is what breaks the bolt free without destroying the hex.

The 3-Step Rescue Protocol for Rounding Bolts

When you encounter a stuck bolt that's starting to round, follow this protocol in order. Each step reduces the risk of further damage.

Step 1: Penetrating Oil Soak (15-20 Minutes Minimum)

Spray the bolt thoroughly with a quality penetrating oil — PB Blaster, Kroil, or a 50/50 mix of acetone and automatic transmission fluid (a well-known mechanic's trick). The key is patience: 15-20 minutes minimum soak time. For severely corroded bolts, apply oil and wait overnight.

Don't waste your money on WD-40 for this purpose. WD-40 is a water displacement formula, not a penetrating oil. Its rust-breaking ability is significantly lower than dedicated penetrating oils.

Step 2: Apply Heat (When Safe)

Heat expands metal. A propane torch applied to the bolt head and surrounding material for 30-60 seconds creates differential thermal expansion that can break the corrosion bond. As the metal cools, it contracts slightly, creating microscopic gaps where the penetrating oil can seep further in.

Safety warning: Never apply heat near fuel lines, brake lines, rubber components, or plastic parts. In an engine bay, be aware of fuel vapor. When in doubt, skip this step.

Step 3: Wrench Extender + 6-Point Socket

Now combine your preparation with the right extraction technique:

1. Select a 6-point socket that fits the bolt as tightly as possible
2. If the bolt has already started to round, try the next smaller metric or SAE size (e.g., use a 12mm on a rounded 13mm bolt)
3. Seat the socket fully onto the bolt head — don't half-engage it
4. Attach your ratchet or breaker bar, then slide the AltitudeCraft wrench extender onto the handle
5. Apply force in one smooth, steady pull — no jerking

When the Bolt Head Is Already Rounded: Backup Extraction Methods

If you're past the point of no return — the hex is completely destroyed — don't keep trying with standard sockets. Switch to a dedicated extraction method.

Bolt Extractor Sockets

Bolt extractor sockets (like Irwin Bolt-Grip or similar) have a spiral flute pattern that bites into the rounded bolt head as you turn counterclockwise. They work well on bolts that are rounded but not completely smooth. Pair them with a wrench extender for maximum extraction force.

Pipe Wrench Method

A pipe wrench's serrated jaws grip harder as you apply more force — the opposite of a standard wrench. For accessible bolt heads, a pipe wrench can sometimes grip what nothing else can. The downside: it will completely destroy the bolt head, so the fastener must be replaced.

Hammer-On Socket or Nut Splitter

For severely rounded bolts, hammer a slightly undersized socket directly onto the bolt head. The socket deforms slightly and creates a friction fit. For nuts, a nut splitter cracks the nut without damaging the stud or bolt threads underneath.

Rounded Bolt Extraction Methods Compared

5 Prevention Tips to Never Round a Bolt Again

Prevention is always easier than extraction. These five habits will dramatically reduce the number of rounded bolts you encounter.

1. Always verify metric vs. SAE before applying force. If you're unsure, try both the metric and SAE socket — the correct one will have zero play. Even 0.5mm of play means the wrong size.
2. Use 6-point sockets on every fastener that might be stuck. Save the 12-point sockets for situations where you need the extra engagement angles in tight spaces — and only on clean, undamaged fasteners.
3. Apply penetrating oil proactively. If you know you'll be working on rusty fasteners tomorrow, spray them today. A 24-hour soak dramatically reduces required breakaway torque.
4. Use a wrench extender instead of impact force. Controlled leverage is always better than hammering on a wrench. The smooth force application reduces slip risk. Learn more in our complete stuck bolt removal guide.
5. Apply anti-seize on reassembly. According to ASTM International fastener standards, anti-seize compound on threads prevents galvanic corrosion that seizes fasteners together. Use copper anti-seize for high-heat applications (exhaust) and nickel anti-seize for stainless steel.

Common Mistakes That Make Rounded Bolts Worse

Knowing what NOT to do is just as important as knowing the correct technique. Here are the most common mistakes that mechanics — even experienced ones — make when dealing with rounded bolts:

• Switching between tools repeatedly. Every time you take a socket off and put it back on a rounding bolt, you risk sitting on a slightly different position and rounding it further. Pick your best tool and commit to it.
• Using an adjustable wrench on a stuck bolt. Adjustable wrenches have inherent play in the jaw mechanism. Under high torque, the jaw opens slightly and rounds the bolt. Use them for holding, not for breaking stuck fasteners.
• Hammering on a ratchet. Ratchets are designed for continuous rotation, not impact. Hammering on a ratchet can damage the ratchet mechanism, break the square drive, and deliver inconsistent force that rounds bolts. Use a breaker bar for high-torque applications.
• Skipping penetrating oil because you're "in a hurry." The 15 minutes you save by skipping penetrating oil will cost you 2 hours extracting a rounded, broken bolt. Always take the time.

Wrench Extender Material Matters: Why Chrome Vanadium Steel

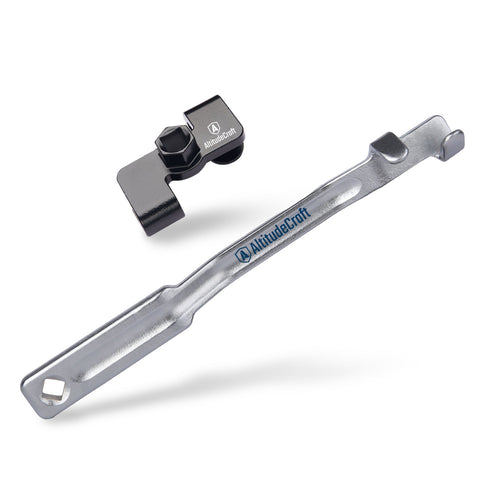

Not all leverage bars are created equal. Cheap extender bars made from mild steel can flex under load, reducing the effective torque transfer and potentially bending permanently. The AltitudeCraft Wrench Extender Set uses chrome vanadium steel (Cr-V) — the same alloy used in professional-grade sockets and wrenches.

Chrome vanadium steel offers three critical properties for a leverage tool:

• High yield strength — resists bending under extreme torque loads
• Hardness without brittleness — won't shatter under sudden impact like cast iron
• Corrosion resistance — the chromium content provides a layer of protection against rust

For the full breakdown of when and how to use leverage tools on difficult fasteners, check out our AltitudeCraft insights blog for additional tool guides and tips.

Frequently Asked Questions

Bottom Line: Save the Bolt Before It's Too Late

A rounded bolt head is a warning signal — not a final verdict. The moment you feel a wrench starting to slip, stop immediately. Continuing with the same approach guarantees a fully rounded, much harder extraction job.

Instead: stop, apply penetrating oil, switch to a 6-point socket, and use a wrench extender for controlled leverage. This combination saves bolts that most people would give up on. For a detailed walkthrough of the complete stuck bolt removal process, read our wrench extender stuck bolt guide.

And remember — the best bolt extraction technique is the one you never need. Apply anti-seize on reassembly, use the right tool for the right fastener, and invest in quality tools that fit properly. Browse our full tool collection to find the right leverage tools for your workshop.
