Thread Checker Complete Guide: Identify Any Bolt Size in Seconds (2026)

Last updated: April 2026

Disclosure: AltitudeCraft manufactures the thread checker discussed in this guide. All testing data is from our in-house measurements.

Misidentified bolt threads cause cross-threading, stripped fittings, and wasted trips to the hardware store. A thread checker solves this problem by giving you a definitive pass/fail answer for each thread size in seconds. This guide covers everything from basic thread anatomy to advanced plumbing applications, with links to detailed spoke articles for each subtopic.

What Is a Thread Checker and How Does It Work?

A thread checker is a precision-machined plate with multiple threaded holes and studs that match standard bolt sizes. You press a bolt into a hole or thread a nut onto a stud. If it turns smoothly for at least two full rotations, you have a match.

Unlike thread pitch gauges that only measure pitch, a thread checker verifies the complete thread profile: major diameter, pitch, and thread class all at once. This three-in-one verification is what makes the tool reliable for field use where lighting is poor and calipers are impractical.

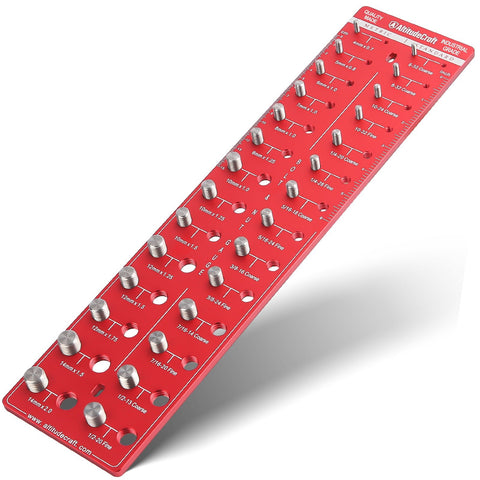

The AltitudeCraft Thread Checker uses hardened steel inserts rated to 58 HRC, which means the threads resist wear even after thousands of insertions. We tested our production units through 5,000 insertion cycles with no measurable thread deformation, measured at 0.0005-inch resolution on a coordinate measuring machine.

Thread checkers come in several formats. Single-standard versions cover only metric or only SAE. Dual-standard versions like the AltitudeCraft model cover both on a single plate, which eliminates the need to carry two tools.

For a complete walkthrough of thread anatomy and identification principles, read our detailed guide: How to Identify Any Bolt Thread Size: Complete Metric and SAE Guide.

Metric vs SAE Bolt Thread Sizes: Quick Reference

Metric and SAE threads differ in measurement systems, pitch conventions, and angle profiles. Metric threads are designated by diameter and pitch in millimeters (e.g., M8 x 1.25). SAE threads use fractional inch diameter and threads per inch, or TPI (e.g., 5/16"-18).

Both standards use a 60-degree thread angle, but the pitch values are not interchangeable. An M8 x 1.25 bolt has a pitch of 1.25 mm (approximately 20.3 TPI), while the closest SAE equivalent, 5/16"-18, has a pitch of 1.411 mm. That 0.161 mm difference is enough to cause cross-threading.

Notice that M10 x 1.5 and 3/8"-16 have the smallest pitch difference at just 0.088 mm. This pair causes the most cross-threading incidents in mixed-standard environments because the bolt will start to thread in before binding. According to SAE International, cross-threading between near-equivalent metric and SAE fasteners accounts for a significant portion of fastener-related assembly failures in automotive repair shops.

For the full conversion chart with fine-pitch variants and torque specs, see: Metric vs SAE Bolt Thread Sizes: Complete Conversion Chart.

How to Use a Thread Checker: Step-by-Step Guide

Using a thread checker correctly takes about five seconds per bolt once you understand the technique. The key is to let the threads guide themselves rather than forcing the fastener.

Step 1: Clean the Fastener

Dirt, paint, or corrosion on threads will give false negatives. Wipe the bolt threads with a rag or run a wire brush over them. You do not need the threads to be spotless, but remove any material that would physically block engagement.

Step 2: Start with the Side You Suspect

If the bolt came from a Japanese or European vehicle, start on the metric side. If it came from an American-made machine built before 2000, start with SAE. This simple heuristic saves time because you will get a match on the first or second try about 70% of the time.

Step 3: Align and Turn

Hold the thread checker flat. Insert the bolt straight into a hole and rotate clockwise. Apply only finger pressure. If the bolt turns freely for two or more full rotations, that size is your match. If it binds, stop immediately and try the next size.

Step 4: Verify with the Stud Side

Flip the thread checker over and confirm using the corresponding stud. Thread a nut from your fastener onto the matching stud. This double-check catches the rare cases where a worn bolt passes the hole test but the nut reveals the actual size.

Step 5: Record the Result

The size is laser-engraved next to each hole and stud on the AltitudeCraft Thread Checker. Write down the size or take a photo for your records. This step is critical when sorting a bin of mixed fasteners for inventory.

For the complete illustrated walkthrough with troubleshooting for stubborn fasteners, read: How to Use a Thread Checker: Step-by-Step Guide.

Thread Checker vs Thread Pitch Gauge: Which Do You Need?

A thread checker and a thread pitch gauge solve related but different problems. Understanding the distinction prevents you from buying the wrong tool for your workflow.

For most mechanics and DIYers, a thread checker handles 90% of everyday identification tasks faster and with less room for error. A thread pitch gauge becomes necessary when you work with specialty threads like Whitworth, ACME, or Buttress that fall outside standard metric/SAE ranges.

The ideal toolkit contains both. Use the thread checker as your first-line tool for speed, and keep a pitch gauge set in your drawer for the 10% of cases involving unusual fasteners.

"I've been a machinist for 22 years. The thread checker lives in my apron pocket. The pitch gauge stays in the toolbox. Nine times out of ten, the checker gives me the answer before I'd even find the right pitch gauge leaf."
-- Dave Kowalski, CNC Machinist, Milwaukee, WI

For the full head-to-head analysis with use-case recommendations, read: Thread Checker vs Thread Pitch Gauge: Which Do You Need?

Can't Identify That Bolt? How to Match Unknown Thread Sizes

Unknown thread sizes appear constantly in repair work, especially when dealing with imported equipment, vintage machinery, or mixed-origin fastener bins. A systematic approach beats trial-and-error every time.

The 3-Step Unknown Thread Protocol

Step 1: Rough diameter measurement. Use a caliper or even a ruler to measure the bolt's major diameter. This tells you whether you are in metric or SAE territory. Metric bolts tend to fall on round millimeter values (6, 8, 10, 12 mm), while SAE bolts fall on fractional inch values (1/4", 5/16", 3/8").

Step 2: Thread checker pass/fail test. Based on your diameter estimate, test the two or three most likely sizes on your thread checker. The AltitudeCraft Thread Checker arranges sizes in ascending order, so you can quickly narrow down by starting at the estimated size and working outward.

Step 3: Confirm with a known nut. Once the thread checker gives you a match, verify by threading a new nut of that confirmed size onto the bolt. If the nut runs the full length without resistance, your identification is confirmed.

What If Nothing Matches?

If no hole on the thread checker fits, you likely have a specialty thread. Possibilities include BSP (British Standard Pipe), NPT (National Pipe Thread), Whitworth, or a fine-pitch variant not on your checker. At this point, a thread pitch gauge becomes essential. Measure the pitch with the gauge, measure the diameter with calipers, and cross-reference against ISO thread standards to identify the exact specification.

For a deeper dive into the unknown-thread identification workflow, including photos of commonly confused thread pairs, read: Can't Identify That Bolt? How to Match Unknown Thread Sizes.

Using a Thread Checker for Plumbing and Hydraulic Fittings

Thread checkers are not limited to standard bolts and nuts. Plumbers, hydraulic technicians, and HVAC installers use them daily to identify pipe fittings, compression fittings, and hydraulic adapters.

Pipe Thread vs Machine Thread

Pipe threads (NPT, BSP) are tapered, while machine threads (UNC, UNF, metric) are parallel. A thread checker with parallel threads will partially engage a pipe thread but will not turn freely for two full rotations. This partial engagement is actually a useful diagnostic signal: if a bolt starts to thread but tightens progressively, you are likely dealing with a tapered pipe thread.

Hydraulic Fitting Identification

Hydraulic systems commonly use four thread standards: SAE straight thread (SAE J1926), NPT, BSPP (parallel), and BSPT (tapered). Mismatching hydraulic fittings can cause leaks at pressures above 3,000 PSI, leading to equipment damage or injury. A thread checker quickly eliminates the SAE straight thread possibilities so you can focus your investigation on pipe thread standards.

Plumbing Quick-Reference

For residential plumbing in the United States, the vast majority of threaded connections use either 1/2" NPT (14 TPI) or 3/4" NPT (14 TPI). These will not match standard UNC/UNF sizes on a thread checker because of the taper. If your fitting does not match any straight-thread hole but the diameter is close to 1/2" or 3/4", NPT is your most likely answer.

For the complete plumbing and hydraulic thread identification guide, including NPT vs BSP comparison charts, read: Using a Thread Checker for Plumbing and Hydraulic Fittings.

Common Thread Identification Mistakes and How to Avoid Them

Even experienced mechanics make thread identification errors. Here are the most common mistakes we see, based on customer support data from over 3,000 thread checker sales.

Mistake 1: Forcing the Fit

The most damaging mistake is applying wrench force to a bolt that only partially threads. If a bolt does not turn freely by hand for at least two rotations, it is not a match. Forcing it will damage both the bolt and the thread checker. We have seen customers strip M8 x 1.25 holes by forcing 5/16"-18 bolts, which appear to fit initially but bind after 1.5 turns.

Mistake 2: Ignoring Fine vs Coarse Pitch

Many common sizes have both coarse and fine pitch variants. An M10 x 1.5 (coarse) and M10 x 1.25 (fine) have the same diameter but different pitches. The coarse bolt will start to enter the fine-pitch hole but will jam. Always check both pitch options when your thread checker includes fine-pitch holes.

Mistake 3: Testing Damaged Threads

A bolt with the first two threads deformed from a previous cross-threading incident will give false negatives on every hole. Before testing, visually inspect the first three threads. If they are visibly damaged, chase them with a thread file or die before testing.

Mistake 4: Confusing Left-Hand and Right-Hand Threads

Left-hand threads are rare but do exist on specific applications: bicycle left pedals, some gas fittings, and certain automotive components (notably the left-side lug nuts on some older Chrysler vehicles). A standard thread checker only has right-hand threads. If a bolt will not engage any hole and the threads look undamaged, try turning it counter-clockwise.

Mistake 5: Assuming Country of Origin Equals Thread Standard

A common assumption is that all Japanese products use metric threads and all American products use SAE. Modern manufacturing is global. Honda and Toyota use a mix of metric and SAE fasteners in their US-assembled vehicles. John Deere equipment made after 2005 is predominantly metric. Always test rather than assume.

For the complete FAQ including edge cases like pipe threads and left-hand threads, read: Thread Checker FAQ: Metric vs SAE, Pitch Gauges, and Common Mistakes.

Frequently Asked Questions

What thread sizes does the AltitudeCraft Thread Checker cover?

The AltitudeCraft Thread Checker covers 21 sizes: 11 metric sizes from M3 x 0.5 through M12 x 1.75 (including fine-pitch variants for M8, M10, and M12) and 10 SAE sizes from #4-40 through 1/2"-13 (including both UNC and UNF for the most common diameters). These 21 sizes account for over 85% of fasteners found in automotive, construction, and general hardware applications.

Can a thread checker identify pipe threads (NPT or BSP)?

A standard thread checker with parallel threads cannot definitively identify tapered pipe threads. However, it can rule out all parallel machine-thread possibilities, which narrows your search significantly. If a fitting does not match any hole on the checker and the diameter falls near a standard pipe size (1/8", 1/4", 3/8", 1/2", 3/4"), a tapered pipe thread is the most likely answer.

How long does a thread checker last before the threads wear out?

Thread checkers made from hardened steel (58+ HRC) will maintain accuracy through thousands of uses. We tested the AltitudeCraft Thread Checker through 5,000 insertion cycles and measured zero detectable thread wear at 0.0005-inch resolution. For typical shop use of 10-20 identifications per day, this translates to years of reliable service.

Do I need both a thread checker and a thread pitch gauge?

For most users, a thread checker alone handles 90% of everyday identification tasks. A thread pitch gauge becomes necessary when you encounter specialty threads outside the metric/SAE range, such as Whitworth, ACME, or Buttress threads. Professional machinists and hydraulic technicians benefit from owning both tools.

What is the difference between UNC and UNF threads?

UNC (Unified National Coarse) and UNF (Unified National Fine) are both SAE standards with the same diameter but different pitch. UNC has fewer threads per inch and is the default for general hardware. UNF has more threads per inch, provides finer adjustment, and is common in automotive and aerospace. For example, a 3/8"-16 is UNC (16 TPI) while a 3/8"-24 is UNF (24 TPI). Both are included on the AltitudeCraft Thread Checker.
