16-Inch On Center Stud Layout: The 15-1/4" Rule

by AltitudeCraft Team Updated: 0 Comments

16 inch on center stud layout is the foundation of residential framing in North America, and it is measured from the end of the wall — not from the center of the first stud. Get it right and your drywall, sheathing, and insulation install cleanly with zero wasted cuts. Get it wrong and every trade that follows fights your framing for the rest of the build.

Key Takeaway: "16 inches on center" means stud centers land at 16", 32", 48", 64" and 80" measured from the end of the wall plate. Because a 2× is 1-1/2" thick, the near edge of each stud sits 3/4" before its center, so your first pencil mark goes at 15-1/4", then 31-1/4", 47-1/4", and so on. The end stud sits flush with the plate end. That geometry produces a 13-3/4" clear opening in the first bay and 14-1/2" in every bay after it — which is why standard insulation batts are made 15" to 15-1/4" wide, and why a 48" sheet of drywall or OSB always breaks on the center of a stud. Marking the first stud at 16" instead of 15-1/4" shifts every sheet joint 3/4" off the framing and is the single most common layout error on a job site.

This guide covers the complete 16" OC layout process: what the measurement actually refers to, the exact bay dimensions, how to handle corners and intersections, door and window king/trimmer studs, which tool size matches which spacing, and where layout jigs genuinely fall short.

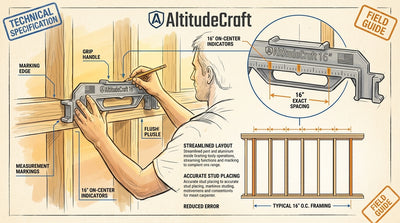

AltitudeCraft 16 inch on center precision framing stud layout tool for wall plate marking
A dedicated 16" OC layout tool sets the stud position mechanically, so cumulative tape-measure drift never enters the wall.

What "16 Inch On Center" Actually Measures

On center (abbreviated OC or o.c.) is the distance from the centerline of one framing member to the centerline of the next. It is not the gap between studs, and it is not the width of the stud bay. This distinction is the source of nearly every 16 OC question that gets asked on a job site.

Three numbers describe the same wall, and mixing them up is what causes trouble:

  • 16" — center-to-center spacing. This is the number in the building code and on your plans.
  • 15-1/4" — where your first pencil mark goes, because you mark the stud's near edge, which is 3/4" ahead of its center.
  • 14-1/2" — the clear opening between the faces of two adjacent studs (16" minus one full 1-1/2" stud thickness). This is the number insulation and blocking are sized to.

All three are correct simultaneously. A wall framed 16" on center has 14-1/2" of clear space between studs and gets marked at 15-1/4" intervals offset from the plate end. If a spec sheet, a tool, or a supplier quotes one of these numbers, check which of the three they mean before you cut anything.

16" OC by the Numbers

Every dimension below follows from two facts: nominal 2× lumber is actually 1-1/2" thick, and layout marks are referenced to the end of the plate.

Dimension Value (2×4 wall) Where it comes from
Center-to-center spacing 16" Code / plan specification
Actual stud thickness 1-1/2" Nominal 2× dressed to 1-1/2"
First layout mark from plate end 15-1/4" 16" center − 3/4" half-thickness
Subsequent marks 31-1/4", 47-1/4", 63-1/4", 79-1/4" Previous mark + 16"
Clear opening, first bay 13-3/4" 15-1/4" mark − 1-1/2" end stud
Clear opening, all other bays 14-1/2" 16" − 1-1/2" stud thickness
Studs in an 8 ft (96") wall 7 2 end studs + 5 layout studs
Stud bays per 4×8 sheet 3 48" ÷ 16"
Matching batt width 15" to 15-1/4" Oversized to friction-fit the 14-1/2" bay

The first bay is intentionally narrower. Because the end stud is flush with the plate end rather than centered on a 16" mark, the first cavity measures 13-3/4" instead of 14-1/2". That is correct framing, not an error — but it does mean the first insulation batt in every wall needs trimming. Framers who assume all bays are identical waste a batt on each wall.

Layout tool marking 16 inch on center stud positions along a wall plate
Marks are referenced to the plate end every time, so an error at one stud never propagates down the wall.

Why 16 Inches On Center?

The 16-inch spacing isn't arbitrary — it's engineered to work with standard building materials:

  • Plywood/OSB sheathing — 48" wide sheets divide evenly by 16" (3 stud bays per sheet), so every sheet edge lands on the center of a stud, leaving 3/4" of nailing surface for each of the two sheets that meet there.
  • Drywall — 48" wide sheets land on studs at every edge and at the two intermediate studs.
  • Insulation batts — batts are manufactured at 15" to 15-1/4" so they compress slightly into the 14-1/2" cavity. JLC notes that batt performance depends on six-surface contact — both studs, both plates, sheathing and wallboard — which is exactly what the friction fit delivers.
  • Structural capacity — per IRC Section R602.3.1, stud size, height and spacing follow Table R602.3(5); utility grade studs specifically may not exceed 16" on center. Local amendments apply, so confirm against your adopted IRC edition.
Stud Spacing Clear Opening Studs per 8ft Wall Material Cost Typical Use Case
16" OC 14-1/2" 7 Baseline Load-bearing walls, most exterior walls
24" OC 22-1/2" 5 ~30% less lumber Non-bearing interior walls, advanced framing, commonly with 2×6
12" OC 10-1/2" 9 ~40% more lumber Heavy tile walls, tall walls, high-wind zones

The Critical Rule: Measure from the Plate End, Not from the Last Stud

This is where most beginners go wrong. "16 inches on center" does not mean the first stud sits 16 inches from the end of the plate.

Here's the correct layout:

  1. The first stud sits flush with the very end of the plate (it's a corner or end stud). Its center is at 3/4".
  2. Measure 15-1/4" from the end of the plate and draw your first layout mark. This mark is the near edge of the second stud — the edge facing the plate end.
  3. Draw your "X" on the far side of that line, away from the plate end. The stud now spans 15-1/4" to 16-3/4", putting its center exactly at 16".
  4. Every subsequent mark is 16" further along, always measured from the plate end: 31-1/4", 47-1/4", 63-1/4", 79-1/4".

Why 15-1/4" and not 16"? Because the number in the code — 16" — describes stud centers, but a pencil can only mark an edge. A 2×4 is 1-1/2" thick, so its near edge sits half a thickness (3/4") ahead of its center. Subtract that 3/4" from 16" and you get 15-1/4". Do the same at every mark and every stud center lands on a whole 16" increment, which is what sheet goods key off.

The end stud is the exception: it is flush with the plate end rather than centered on a layout increment, which is why its center is at 3/4" and the first bay comes out 13-3/4" instead of 14-1/2".

Close-up of 16 inch on center stud layout markings showing the 15-1/4 inch first mark
The pencil line marks the stud's near edge at 15-1/4"; the X goes on the far side so the stud center lands on 16".

How to Lay Out a Wall: Step-by-Step

Step 1: Cut and Position Your Plates

Cut your top and bottom plates to wall length. Lay them side by side on the floor — you'll mark both plates simultaneously to ensure perfect stud alignment between top and bottom.

Step 2: Mark the End/Corner Studs

Draw an "X" at each end of both plates for your end studs. These go right at the plate ends, flush.

Step 3: Hook Your Tape or Layout Tool

Hook your tape measure on the end of the plate — the same end every time, for consistency. Or use a 16" OC layout tool that indexes off the previous stud mechanically, with no measuring at all.

Step 4: Mark Stud Positions

Mark at 15-1/4", then every 16" from the plate end:

Stud # Mark (near edge, from plate end) Stud Center Clear Opening Behind It
1 (end stud) Flush at 0" 3/4"
2 15-1/4" 16" 13-3/4"
3 31-1/4" 32" 14-1/2"
4 47-1/4" 48" 14-1/2"
5 63-1/4" 64" 14-1/2"
6 79-1/4" 80" 14-1/2"
7 (end stud) Flush at 96" 95-1/4" 13-3/4"

Note the symmetry: on a wall whose length is an exact multiple of 16", both end bays come out 13-3/4" and everything between is 14-1/2".

Step 5: Draw an "X" on the Correct Side

At each mark, draw an "X" on the side of the line where the stud body will sit — away from the plate end. Without it, the framer has to guess, and half the time the stud lands on the wrong side of the line, shifting that stud's center by 1-1/2".

Step 6: Transfer to Both Plates

With plates side by side, use a square to carry each mark across both plates simultaneously. This guarantees the top and bottom plates match perfectly.

Marking top and bottom wall plates together for consistent 16 inch on center stud alignment
Marking both plates in one pass is what guarantees the stud is plumb once the wall is stood up.

Which Layout Tool Size Do You Actually Need?

This is the most expensive mistake buyers make, and it comes straight from the three-numbers confusion above. A spacer-style layout jig is sized to the clear opening, not to the on-center spacing. A tool for 16" OC framing measures 14-1/2" across its working face — so a "12 inch" tool is not a smaller version of the same thing, it is a tool for a completely different layout.

Your layout spec Clear opening the jig must match Lumber Typical application
12" OC 10-1/2" 2×4 Tall walls, heavy tile backing, high-wind framing
16" OC 14-1/2" 2×4 or 2×6 Standard residential walls, floor joists, most rafters
24" OC 22-1/2" Usually 2×6 Advanced framing, non-bearing partitions, roof trusses

2×4 vs 2×6 walls: the on-center spacing and the clear opening are unchanged by stud depth. A 2×6 is still 1-1/2" thick; it is only 5-1/2" deep instead of 3-1/2". So a 16" OC layout jig works identically on a 2×6 wall, as long as the jig registers against the stud face and not the full depth of the stud. Check that before you buy if you're framing 2×6 exterior walls.

If you're weighing spacer jigs against layout tapes and story poles, our comparison of 7 framing layout tools from $5 to $90 covers the trade-offs, and the 16 vs 24 OC tool FAQ answers the rafter and accuracy questions. For 24" OC work specifically, see the 24" framing jig.

Framing layout tool holding stud spacing near a door opening at 16 inch on center
A spacer jig is sized to the 14-1/2" clear opening, which is why a "12 inch" tool will not produce 16" OC layout.

Handling Corners and Intersecting Walls

Outside Corners

An outside corner needs extra studs for drywall nailing on the inside. The standard method uses three studs: two at the plate end (forming an L) and one turned flat as a drywall backer. A "California corner" uses two studs plus drywall clips, saving material and leaving room for insulation.

Interior Wall Intersections (T-Walls)

Where an interior wall meets an exterior wall, you need backing for drywall on both sides. Options:

  • Ladder blocking: two studs with horizontal blocks between them (most common, code-approved, keeps the cavity insulable)
  • Extra stud: add a flat stud alongside the nearest layout stud
  • Drywall clips: metal clips eliminate the need for extra backing studs entirely

Key rule: never move a layout stud to accommodate a corner or intersection. Add extra studs instead. Moving a layout stud breaks the 16" pattern and causes sheet good joints to miss framing. If yours have already drifted, see how to fix 16 OC layout errors.

Door and Window Openings

Openings interrupt your 16" OC layout, but the layout studs on either side of the opening must maintain the 16" pattern. Here's the framing anatomy of a typical opening:

  • King studs — full-height studs on each side of the opening, nailed to the plates.
  • Trimmer (jack) studs — shorter studs that support the header, nailed to the inside face of the king studs.
  • Header — horizontal beam spanning the opening, sitting on the trimmers.
  • Cripple studs — short studs above the header and below the window sill, maintaining 16" OC layout through the opening.

Critical point: cripple studs above headers and below window sills must maintain the same 16" OC layout as the wall. This ensures sheathing and drywall seams still land on framing through openings. The same logic applies overhead — see 16" spacing in ceiling framing — and underfoot in deck joist layout.

Using a Layout Tool vs a Tape Measure

A dedicated stud layout tool eliminates the most common source of framing errors: misread tape measures at fractional marks.

Method Speed Error Mode Best For
Spacer jig Fast — step and mark Cumulative, if the jig has play Production framing, long walls, beginners
Tape measure from plate end Moderate Isolated — one bad mark stays local Short walls, odd angles, experienced framers
Framing square marks Slow but precise Low for experienced users Verification, small projects

Note the error modes are opposites, and that matters more than raw speed. A tape measured from the plate end produces isolated errors: misread 79-1/4" and only that stud is wrong. A spacer jig produces cumulative errors: whatever slop exists in the fit gets added once per stud and marches down the wall. Which one you want depends on how tight your jig is.

Where Layout Jigs Fall Short

Three honest limits are worth knowing before you buy, because they account for most of the disappointment we see in returns:

  • Lumber is not a constant. A kiln-dried 2×4 is 1-1/2" thick when it leaves the mill, but a damp or crowned stud can vary. A jig sized for a nominal 14-1/2" opening will feel loose on some studs and tight on others. If your jig indexes off the stud face, that variation shows up as play — on a long wall, 1/16" of play per stud is 1/2" by the far end. Reset against the plate end every few studs and the drift never accumulates.
  • Most spacer jigs assume the wall is flat on the deck. They are built to hold a stud against a plate while you nail it, which is a floor-framing operation. Retrofitting a stud into a wall that is already standing usually means going back to a tape and a square.
  • A jig cannot fix a wrong first mark. It reproduces whatever spacing you start it from. If the end stud is not flush or the first mark is at 16" instead of 15-1/4", the jig will faithfully repeat that error the whole length of the wall.

None of these are reasons to skip a jig on a production wall. They are reasons to verify the first mark by tape, and to spot-check at 48" and 96" where sheet goods will land.

Comparing layout tool precision against tape measure marking for 16 inch on center framing
Spot-check the jig against a tape at 48" and 96" — those are the two marks a sheet of drywall actually cares about.

Common Mistakes in 16" OC Stud Layout

1. Starting at 16" Instead of 15-1/4"

If your first stud mark is at 16" from the plate end, every stud center shifts 3/4" and your sheet goods no longer break on framing. By the third sheet the joint is floating in the middle of a bay. This is the single most common framing layout error.

2. Measuring from the Last Mark Instead of the Plate End

Cumulative error kills accuracy. A 1/16" error per stud becomes nearly 1/2" by the end of a 16-foot wall. Always measure from the plate end. Fine Homebuilding's shop-built spacing jig is built to the same 14-1/2" clear dimension for exactly this reason.

3. Assuming Every Bay Is the Same Width

The first and last bays in a wall are 13-3/4", not 14-1/2", because the end studs are flush rather than centered on a layout increment. Order insulation and cut blocking accordingly.

4. Moving Layout Studs for Openings

When a door or window interrupts the layout, some beginners delete or shift the layout studs. Instead, the layout studs become king studs or are carried through as cripples above and below the opening. The 16" pattern must continue unbroken.

5. Not Marking Both Plates Together

Marking the top and bottom plates separately doubles your chance of errors. Lay them side by side, square your marks across both, and they'll match perfectly when you stand the wall up.

6. Forgetting the "X" Side

A pencil line tells you where the stud edge is, but not which side of the line the stud goes on. Without a clear "X", half the time the stud lands on the wrong side, shifting that center by 1-1/2".

Framing more than a couple of walls?

See the 16" Framing Layout Tool

Frequently Asked Questions

What is the clear opening between studs at 16" on center?

14-1/2". Studs spaced 16" center-to-center are 1-1/2" thick, so 16" minus one stud thickness leaves 14-1/2" of clear space between their faces. The exception is the first and last bay in a wall, which measure 13-3/4" because the end studs sit flush with the plate ends instead of centered on a layout mark. Insulation batts are manufactured at 15" to 15-1/4" so they friction-fit the 14-1/2" cavity.

Where does the first stud mark go — 16" or 15-1/4"?

15-1/4". The 16" figure is the stud's center, but you can only mark an edge with a pencil. Half of a 1-1/2" stud is 3/4", so the near edge lands at 16" − 3/4" = 15-1/4". Put the X on the far side of that line and the center falls exactly on 16".

Does 16" on center change for a 2×6 wall?

No. A 2×6 is 5-1/2" deep but still 1-1/2" thick, so the spacing, the 15-1/4" mark and the 14-1/2" clear opening are all identical. Only the wall depth changes, which affects insulation R-value and the size of your headers, not your layout.

Can I use 24" on center instead of 16" to save money?

For non-load-bearing interior walls, often yes. For load-bearing and exterior walls, 24" OC typically requires upgrading to 2×6 studs and depends on wall height and load per IRC Table R602.3(5). The ~30% lumber savings is partly offset by thicker studs and drywall considerations — 1/2" drywall can sag across a 22-1/2" bay, so 5/8" is usually recommended. Check your local code and structural plans.

Why don't my drywall sheets line up with my studs?

Almost always because the first stud mark was placed at 16" instead of 15-1/4" from the plate end. That shifts every stud center 3/4", causing 48"-wide sheets to land between studs instead of breaking on them. The fixes are re-layout or added blocking — both expensive, which is why the first mark matters most.

What if my wall length isn't divisible by 16?

It doesn't need to be. The last bay will simply be narrower than the rest. That's normal — the end stud still provides a nailing point for sheet goods regardless of bay width. Keep the layout referenced to the same plate end throughout so the 16" increments that sheets rely on stay true.

Is a layout tool worth buying for a single project?

If you're framing more than two or three walls, yes — the time saved and the layout errors avoided pay for it on day one. For a single short wall, a careful tape layout from the plate end works fine. Our tested comparison of 7 layout tools covers the range, and the beginner wall framing walkthrough puts the layout step in context.


Disclosure: AltitudeCraft manufactures the framing layout tool referenced in this guide. The 16" OC layout principles described follow IRC (International Residential Code) standards and are universal to residential construction in North America; local amendments may apply. Verify spacing and stud size against your adopted code edition and structural plans. Prices were accurate at time of publication.
