How to Straighten Brake Line Tubing: Tool, By Hand, or Replace (2026)

If you are trying to figure out how to straighten brake line tubing, the first thing to settle is not which tool to buy — it is whether a tool can help you at all. A roller-type brake line straightener is a bench tool. It has to be clamped in a vise or bolted to a bench, and the tubing has to be free at one end so it can be threaded through the rollers. If the line is still bolted to the car, no roller straightener on the market will touch it.

That single fact explains most of the frustration around this job, and we can put a number on it: across 182 returns of our own tubing straightener (126 of them with written customer comments), the two largest complaint clusters were people who could not mount the tool, and people who squared or marred their tubing by cranking the rollers down too hard. Almost none were broken tools.

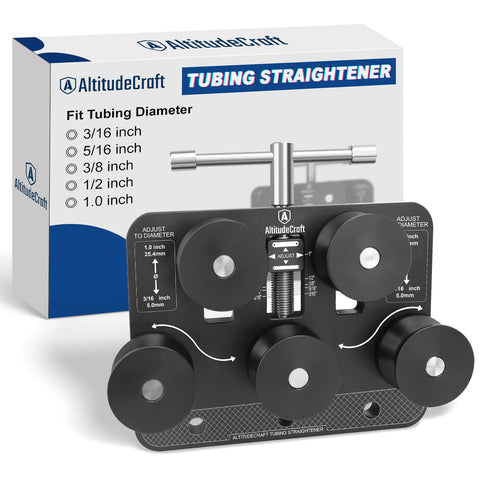

Already know the tube is off the car and you need the tool? See the AltitudeCraft Tube Straightener — 3/16" to 1.0", $89.99, 3-year limited warranty.

Start Here: Three Questions That Decide Your Method

Before you buy anything, answer these. They route you to the right section of this guide and, in two of the four cases, save you the price of a tool.

Why a Roller Straightener Can't Touch a Line That's Still on the Car

This is the most common wasted purchase in this category, and it is worth being blunt about because our own product page has historically undersold it. Of the 126 written return comments we reviewed, 8 (6.3%) came down to mounting and size. The comments say it plainly:

"Unable to use this product without a workbench and vise. Product is great, but cannot use it."

"Didn't realize I would need to Mount it. Didn't use it."

"I wanted something small enough to use on existing brakelines in auto. This thing is HUGE! Not usable for intended purpose."

"Unable to disconnect tubing that needs straightening, therefore unable to use product."

The mechanics are simple. To reverse coil memory, the rollers have to apply a bending force across three or more contact points while the tube slides through. Generating that force requires the tool body to be anchored to something that does not move. There is no version of this that works one-handed under a wheel well.

There is a second constraint that catches people even when they have a bench: the tube has to be free at one end and long enough to thread. A line that is flared and fitted at both ends, or trapped in a chassis clip run, cannot be fed through the rollers no matter how good the tool is.

So if you searched for how to straighten a brake line without a tool, you were not asking the wrong question. In your situation it is the only question, and the honest answer is in the next-but-one section.

How to Straighten Brake Line Tubing With a Roller Straightener

Assuming the tube is off the car and free at one end, here is the sequence that avoids the two failure modes in the return data.

1. Mount the tool first. Bench vise on the tool body, or bolt it through the mounting holes. If it moves while you pull, your pressure is inconsistent and you will get waves.
2. Back the roller pressure all the way off, then bring it in until the tube passes through with light drag — you should be able to pull it by hand without leaning into it.
3. Pull the full length through at a steady speed. Do not stop and restart. Every pause becomes a visible flat or wave at that point in the tube.
4. Rotate the tube roughly 90° and pass it again. Coil set exists in one plane; rotating between passes attacks what is left of it from a second direction.
5. Add a small amount of pressure only if the curve stopped improving between passes. Three or four light passes beat one heavy pass every time.
6. Check on a flat surface and roll the tube. A tube with residual curve will lift off the bench as it rotates; a straight one stays down.

The failure mode that ruins tubing: too much roller pressure

This was the single largest complaint cluster — 9 of 126 comments (7.1%), and it is almost entirely on soft materials, copper and aluminum:

"Tried to straightening the 7/8" pipe and got almost square pipe?!? Unable to solder the fittings on a square pipe!"

"Completely destroyed a $60 piece of tubing by deforming it with the V Notch rollers."

"Used one time on 5/8 inch copper tube and tube now have square edges."

Note the word people actually use: square, not oval. That distinction matters, and an earlier version of this guide got it wrong by describing the failure as an oval cross-section. V-groove rollers contact a round tube along two flat faces. Over-tighten them and the tube takes on those faces — you end up with a faceted tube that will not seal in a flare and will not slip into a solder fitting. Once that happens the section is scrap.

The cheap insurance: set your pressure on a 12-inch offcut of the same tubing before you run the length you actually need. A scrap piece costs a few cents. A ruined pre-flared line costs an afternoon.

Why one pass never looks straight

Eight of 126 comments (6.3%) were not about damage at all — they were about expectations:

"Does not straighten line perfectly, just makes a bigger roll of tubing."

"Always left pipe with a radius."

That is the tool working correctly, not failing. A roller set removes a portion of the curvature on each pass, so a tightly coiled tube comes out of the first pull as a wide, gentle arc — measurably straighter, visually still curved. Straight is the result of stacking passes. Anyone who tells you a roller straightener produces a dead-straight tube in a single pull is describing a machine that does not exist at this price point.

How to Straighten Brake Line Tubing by Hand (No Tool)

These methods work, with real limits. They are the right answer for short runs of soft line, and the only answer when the tube cannot come off the car in one piece.

The rolling method

1. Uncoil 2 to 3 feet at a time — do not fight the whole coil at once.
2. Lay the section on a flat, hard surface. A concrete floor or a steel bench top; a wooden bench flexes and gives you inconsistent results.
3. Roll the tube back and forth under both palms with even downward pressure, walking your hands along the length.
4. Rotate the tube 90° and repeat, same as with the roller tool.
5. Stop when the section lies flat on its own weight.

The anchor-and-tension method

1. Clamp one end in a vise using soft jaws, or wrap the tube in a few turns of tape first.
2. Walk the line out to full length in a straight run.
3. Apply steady pull — enough to take the curve out, not enough to stretch and thin the wall. If you feel the tube yield and lengthen, you have gone too far.
4. Work the remaining curves out by hand, bending gently against the direction of each curve.

Never grip brake tubing with standard pliers. Plier jaws leave dents and score marks, and a scored wall is a stress riser in a pressurized line. Soft-jaw grips or tape, always.

What hand straightening cannot do

Be realistic about the boundary. Hand methods work on copper-nickel and annealed copper. On steel and stainless brake line they largely do not — those materials work-harden and spring back faster than you can flatten them, and you will wear out your hands before the tube is straight. For long production runs, or any hardened material, the roller tool is not a luxury.

DIY Brake Line Straighteners: What Works, What Wastes Tubing

Plenty of people search for a DIY brake line straightener before buying one. Some improvised approaches are genuinely fine; others cost more in ruined tubing than the tool costs.

Will Your Tubing Actually Fit? Capacity Is Measured on Straight Tube

Eight of 126 comments (6.3%) were fitment problems, and one of them identified the mechanism better than any spec sheet does:

"While a 1" pipe will fit in the clamp, the clamp does not open far enough to fit a bent 7/8 inch pipe. It will not work for the use I needed."

That is the trap in every capacity rating in this category, ours included. The stated maximum diameter is measured on a straight tube. A bent or coiled tube has an envelope larger than its own diameter — the curve has to physically pass through the roller throat. And by definition, every tube you want to straighten is bent. Practical rule: leave at least one nominal size of headroom between your tube's outside diameter and the tool's stated maximum, and more if the coil radius is tight.

Material Limits: Copper, Aluminum, Steel, Stainless, and PEX

Six of 126 comments (4.8%) were material mismatches — people who bought a roller straightener for something outside its physics. Two of those materials deserve specific warnings, and we will note where our own product copy has been too broad.

Why PEX does not stay straight

Three separate customers returned the tool because it would not straighten PEX. That is a materials problem, not a tool problem. PEX coil memory is thermal: the cross-linked polyethylene structure relaxes when it is warmed and stiffens again as it cools. Run cold PEX through metal rollers and you deform it elastically — it springs back to the coil as soon as it leaves the tool. The methods that actually work on PEX combine gentle heat with mechanical straightening, which is a different process from what a metal-tube roller does.

Where our own copy has been too broad: the AltitudeCraft product page lists "stainless steel tubing, and plastic tubing" under compatibility. Based on our own return data, that is optimistic for stainless and wrong for PEX. We would rather say so here than sell you a tool for a job it cannot do.

Already Kinked? Why You Replace Instead of Straighten

A curve is not a kink. A kink is a crease — the inner wall of the bend has buckled and folded. Once that has happened, the wall thickness at the crease is permanently reduced and the grain structure is damaged. Straightening it back out does not restore the material; it works the damaged section a second time.

The pressure argument is worth getting right, because the figure that circulates most often online is vague. Published targets vary by system: performance brake supplier TBM Brakes recommends roughly 950–1,000 psi of line pressure for normal braking and notes that pressure "could spike upwards of 1400-1500 psi" in an emergency stop. Street systems commonly run lower in ordinary braking and climb toward the upper end of that range at the front wheels under panic braking. Either way, the line has to survive the peak, not the average — and a previously kinked section is exactly where it will not.

The economics are not close. A few feet of brake line tubing costs a fraction of a brake job, and far less than the consequences of a line letting go. Cut the kinked section out and join with a union fitting if the run is long, or replace the full line. The Copper Development Association's material guidance for automotive brake tube underscores how directly tubing integrity maps to braking performance.

One more material rule that belongs here: hardware-store copper tubing is not brake line. Type K, L and M copper are plumbing materials and do not meet DOT FMVSS 106 requirements for burst pressure and fatigue resistance. Use tubing specifically rated for brake use — steel, stainless, or copper-nickel such as AGS NiCopp.

Bending Without Kinking Is a Different Job

Straightening the coil and bending the line to shape are separate operations with separate tools, and conflating them is how kinks get introduced right after a perfect straightening job. Always straighten completely first — tubing with coil memory left in it produces compound curves that will not sit flat against the chassis.

Use a bender, and know its actual radius

A tube bender supports the tube through the bend so the inner wall cannot buckle. What it will not do is bend tighter than the radius its former is cut for.

A correction worth making: an earlier version of this guide stated a minimum bend radius of 3/8" for 3/16" line — "2× tube diameter" — with no source behind it. We can no longer support that number, and it appears to circulate largely because pages like this one repeated it. The figure with an actual engineering basis is the general tube-bending rule of thumb of roughly 2.5× outside diameter at the centerline, which puts 3/16" line at about 1/2". In practice, what governs is the bender you own: common 3/16" brake line benders are cut for radii in the 7/16" to 3/4" range. Check the tool, not a blog post.

Practical bending rules

• Plan all bends before you cut. Mock the routing on the vehicle, mark the bend points, then form from one end.
• Overbend and let it spring back. Every metal springs back; going 5–10° past target and releasing lands you closer than creeping up on the angle.
• Leave 2–3 inches of extra length. Trimming is easy; a short line is scrap.
• Flare last. Form every bend, test-fit on the vehicle, then flare. Flaring first locks in a length you cannot adjust — see our brake line flaring guide.
• Bend slowly. NAPA's technicians make the same point in their brake and fuel line bending guidance: rushed bends are where the inner wall buckles.

What 182 Returns Say About Roller Straighteners

Most tool guides describe how a product should work. This one can also tell you how it fails, because we pulled the full return record for our own tubing straightener — 182 returns, 126 with written customer comments. Here is the breakdown, and the honest reading of it.

The finding that surprised us is inside the "defective" bucket. 31 returns were coded defective; 19 of those left a comment, and only 2 of the 19 describe an actual mechanical fault (a poorly made jack screw, a seized top adjusting bolt). Five describe tubing the customer deformed, and the remainder say some version of "it didn't make my pipe straight" or "it didn't fit." In other words, most of what gets filed as a broken tool is a documentation gap — which is why this guide leads with mounting requirements and roller pressure instead of a feature list.

Ready to straighten brake lines properly?

The AltitudeCraft Tube Straightener handles 3/16" to 1.0" on acetal rollers, mounts in a bench vise or bolts down through built-in holes, and is covered by our 3-year limited warranty. $89.99, free shipping on orders over $48.

Comparing options first? See our 2026 tubing straightener buyer's guide and our head-to-head against the Imperial straightener, or browse the full AltitudeCraft tool collection.

Frequently Asked Questions

Can I straighten a brake line that is still on the car?

Not with a roller straightener — it has to be clamped to a bench, and the tube has to be free at one end to feed through the rollers. On the vehicle, your options are careful hand-straightening of an accessible section, or replacing that run with new or pre-bent line. This was the single most common reason customers returned our tool.

How do I straighten brake line tubing without any tool?

Roll 2–3 foot sections under both palms on a flat, hard surface, rotating the tube 90° between passes, or clamp one end in soft jaws and apply steady tension along the full length. Both work well on copper-nickel and annealed copper. Neither works well on steel or stainless, which spring back faster than hand pressure can overcome.

Why did my tubing come out square instead of round?

Roller pressure was too high. V-groove rollers contact a round tube along flat faces, and excessive clamping transfers those faces to the tube. A squared section will not flare or solder and cannot be recovered — set your pressure on a scrap offcut first, then run the real length.

Why is my tube still curved after a pass through the straightener?

That is normal. Each pass removes a share of the coil set, so one pull typically converts a tight coil into a wide arc rather than a straight tube. Make three or four light passes, rotating the tube about 90° between them, and increase pressure only when a pass stops improving the curve.

Can I straighten a kinked brake line, or does it have to be replaced?

Replace it. A kink permanently thins and damages the wall at the crease. Since line pressure can spike into the 1,400–1,500 psi range or higher during an emergency stop, that crease becomes the failure point. Cut the kinked section out and join with a union if the run is long, or replace the whole line.

Will a tubing straightener work on PEX?

No, not on its own. PEX coil memory is thermal — the material has to be warmed to relax, and cold rollers only deform it elastically, so it springs back to the coil. PEX straightening needs heat combined with mechanical guidance, which is a different process from metal tube straightening.

Does it work on stainless steel brake line?

Marginally. Stainless work-hardens quickly and has significant spring-back, so it needs more passes and more pressure — which increases the risk of marring. If most of your work is stainless, a roller straightener is not the strong recommendation it is for copper-nickel.

My tool says it handles 1.0" tubing — why won't my 7/8" tube fit?

Capacity ratings are measured on straight tube. A bent or coiled tube occupies a larger envelope than its own diameter, and that whole envelope has to clear the roller throat. Leave at least one nominal size of headroom below the stated maximum, and more when the coil radius is tight.

What tubing should I use for custom brake lines?

Copper-nickel (CuNi/NiCopp) for most DIY fabrication: it is DOT-approved, corrosion-resistant, bends without work-hardening, and flares cleanly. Plain copper tubing from a hardware store is a plumbing material and does not meet DOT FMVSS 106 requirements — never use it for brake lines.
